Installing the backrest covering

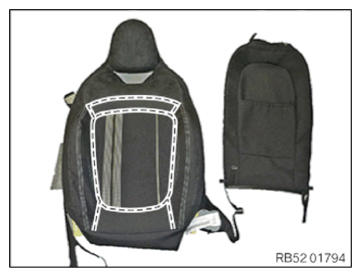

- Correctly place the backrest covering onto the cushion.

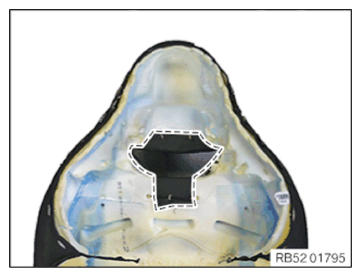

- Secure all marked trim wires with clamps.
- Replace the clamps (2)
.
Parts: Clamps
- Insert the clamp (2) with the special tool 0 492 668 (52 0 050).
- Clasp trim wire (3)
of cushion (1)
and trim wire (4)
of seat cover with clamp (2)
and bend clamp (2)
.
1 Upholstery 2 Clamp 3 Trim wire in cushion 4 Trim wire in seat cover 5 Seat cover - Secure all marked trim wires with clamps.
- Replace the clamps (2)
.
Parts: Clamps
- Insert the clamp (2) with the special tool 0 492 668 (52 0 050).
- Clasp trim wire (3)
of cushion (1)
and trim wire (4)
of seat cover with clamp (2)
and bend clamp (2)
.
1 Upholstery 2 Clamp 3 Trim wire in cushion 4 Trim wire in seat cover 5 Seat cover
Follow-up work
- Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION .
- Refer to INSTALLING SIDE AIRBAG ON FRONT SEAT .
- Refer to INSTALLING THE TRIM AT THE BOTTOM OF THE APERTURE .
- Refer to INSTALLING THE REAR PANEL ON THE FRONT SEAT BACKREST .
- Refer to INSTALLING THE OUTER COVER ON THE FRONT SEAT .
- Refer to INSTALLING THE LEVER FOR SEAT HEIGHT ADJUSTMENT .
- Refer to INSTALLING THE STEERING LEVER FOR BACKREST ADJUSTMENT .
- Refer to INSTALLING THE COVER FOR BACKREST ADJUSTMENT .
- Refer to INSTALLING INNER COVER .
- Refer to INSTALLING FRONT SEAT .
- Refer to INSTALLING THE FRONT STRAP FITTING .
