Installing the backrest covering with the cushion
Installing the backrest covering with the cushion

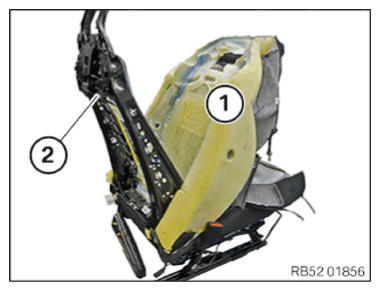

Position the backrest covering with cushion (1) as shown and correctly position on the backrest frame (2).
Courtesy of BMW OF NORTH AMERICA, INC.

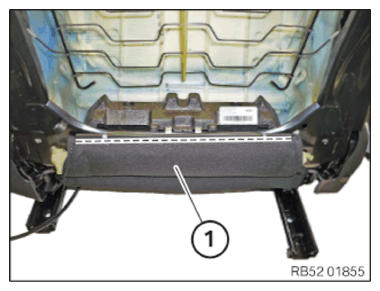

Clip in the backrest covering (1) in the marked area.
Courtesy of BMW OF NORTH AMERICA, INC.
Engage thumbwheel (1) in arrow direction.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
