Seats -- Repair Cooper (F55 & F56)
>>
52 18 Front Seat, Sensor, Manual
>>
52 18 198 Removing and installing or replacing rear panel on left or right front seat backrest (Cooper 2-door hatchback models, 2020-2023)
>>

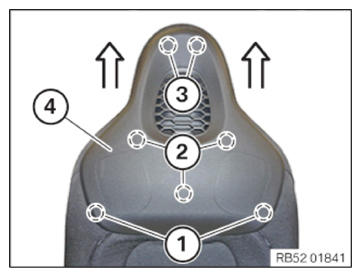

Install the rear panel on the front seat backrest
Install the rear panel on the front seat backrest
Attach the rear panel
(4)
in arrow direction in the marked points
(3)
.
Carefully clip in rear panel
(4)
at the marked points
(2)
and
(3)
.
Courtesy of BMW OF NORTH AMERICA, INC.
