Replace rear bumper panel
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
Preliminary work
- Refer to REMOVING THE LEFT AND RIGHT TAIL LIGHTS .
- Refer to REMOVING THE REAR WHEEL ARCH TRIM .
- Refer to REMOVING REAR RIGHT UNDERBODY PLANKING .
- Refer to REMOVING THE REAR BUMPER COVER .
Remove the left and right front fog light
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the rear fog light

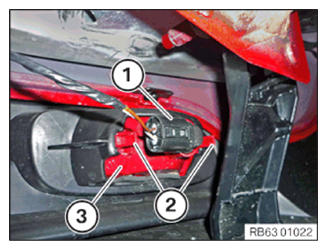

- Unlock plug connection (1) and disconnect.
- Unlock the retaining tabs (2) and simultaneously press the rear fog light (3) outwards.

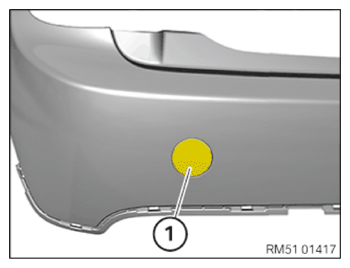

- Remount cover for towing eye (1) left and right.
Install the left and right front fog light
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the rear fog light
- Position the rear fog light (3) in the bumper.
Retaining tabs (2) must lock audibly.
- Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING THE REAR BUMPER COVER .
- Refer to INSTALLING UNDERBODY PLANKING, REAR RIGHT .
- Refer to INSTALLING THE REAR WHEEL ARCH TRIM .
- Refer to INSTALLING THE LEFT AND RIGHT TAIL LIGHTS .
