Body Equipment -- Repair (1 Of 2) Cooper (F55 & F56)
>>
51 13 Trim Parts, Covers, Handle Strip
>>
51 13 105 Removing and installing/replacing trim on rear left or right wheel arch (Cooper JCW GP 2-door hatchback)
>>
Installing the rear wheel arch trim
Installing the rear wheel arch trim

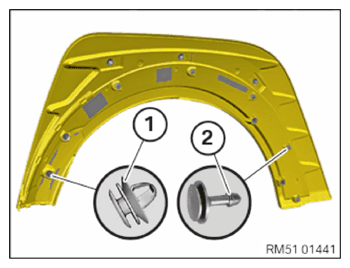

Check the clips (1) and (2) for damage and replace where required.
Courtesy of BMW OF NORTH AMERICA, INC.

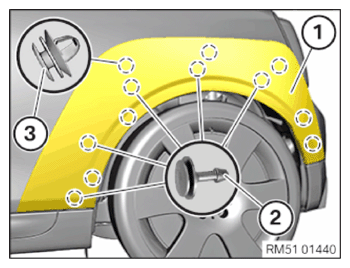

Attach the wheel arch trim (1) and position it correctly.
Engage the wheel arch trim (1) into the detents of the rear bumper cover.
Clip in the wheel arch trim (1) at the clips (2) and (3).
