Installing the convenience charging electronics

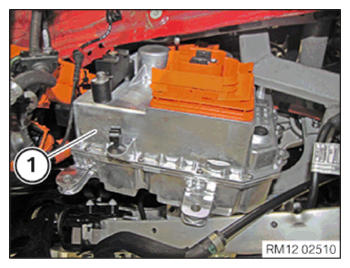

- Position the convenience charging electronics (1) as shown and thread it in a little.

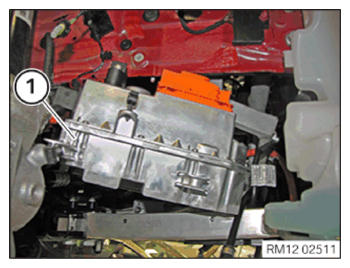

- Slightly twist the convenience charging electronics (1) and thread it out.
- Position the convenience charging electronics (1).WARNING: Potential equalization in high-voltage system.
Mortal hazard if the potential equalization screw connection is not correct!- Observe the safety requirements for the potential equalization screw connection.
- Clean contact faces and have then checked by a second person.
- Tighten the screws/nuts for potential equalization with torque; have a second person check the torque.
- Correct execution of these tasks must be documented in the vehicle records by both persons.

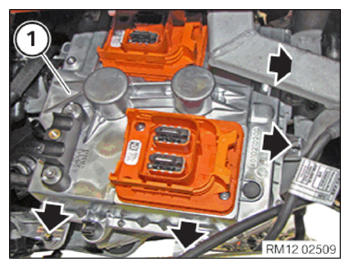

- Tighten the screws (arrows).TIGHTENING TORQUES SPECIFICATION
Standard charging electronics (SLE) to equipment frame M8 19 Nm
Follow-up work
- Refer to CLOSING THE HIGH-VOLTAGE PLUG CONNECTION AT THE EME .
- Refer to CLOSING THE PLUG CONNECTIONS .
- Refer to CONNECTING THE COOLANT LINES .
- Refer to CLOSE PLUG CONNECTION .
- Refer to CLOSING THE HIGH-VOLTAGE PLUG CONNECTIONS .
- Refer to FASTENING THE POTENTIAL EQUALIZATION LINE ONTO THE BODY (RIGHT) .
- Refer to INSTALLING THE FRONT RIGHT AND LEFT WHEEL .
- Refer to CONNECTING COOLANT LINES TO THE HIGH-VOLTAGE BATTERY UNIT .
- Refer to CONNECTING COOLANT LINES TO THE COOLANT PUMP OF THE POWER ELECTRONICS .
- Refer to FILLING THE COOLANT CIRCUIT WITH THE VACUUM FILLING EQUIPMENT .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE BRACE ON THE FRONT SUBFRAME .
- Refer to CONNECTING BATTERY GROUND LEAD .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
- Refer to INSTALLING THE COVER OF THE HIGH-VOLTAGE SAFETY PLUG .
- Refer to AIR BLEEDING THE COOLANT CIRCUIT .
- Refer to ENCODE/PROGRAM CONTROL UNIT(S) .
