Installing the positive battery cable

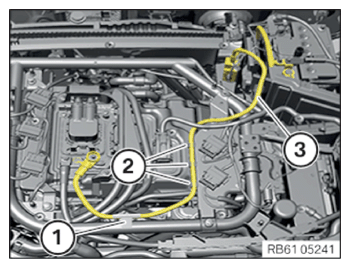

• Position the positive battery cable (3).
• Fasten the cable clip (1).
• Position the positive battery cable (3) in the guide (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

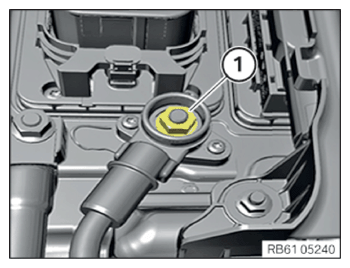

• Tighten nut (1).
  TIGHTENING TORQUES SPECIFICATION



  Positive battery cable to electrical machine electronics (EME)
  M8		15 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

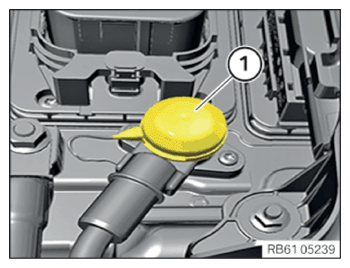

• Clip in the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Positive battery cable the positive battery cable (4).
• Tighten nuts (1).
  TIGHTENING TORQUES SPECIFICATION



  Battery positive cable to holder
  Nut M6	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

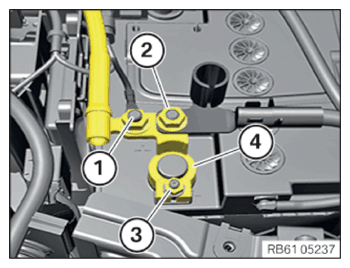

• Connect connectors (2) and lock.
• Fasten the cable clip (3).
• Position the positive battery clamp (4) on the positive battery terminal.
• Tighten nut (3).
  TIGHTENING TORQUES SPECIFICATION



  Positive battery terminal to battery
  Nut M6	Tightening torque	5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the corresponding cable and tighten the nut (1).
  TIGHTENING TORQUES SPECIFICATION



  Positive battery cable to positive battery terminal
  M8		15 Nm

• Position the corresponding cable and tighten the nut (2).
  TIGHTENING TORQUES SPECIFICATION



  Positive battery cable to positive battery terminal
  M8		15 Nm

Follow-up work

• Refer to INSTALLING SECOND UPPER BULKHEAD .
• Refer to INSTALLING THE RIGHT WINDSHIELD PANEL COVER .
• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE BATTERY COVER AT THE SIDE .
• Refer to INSTALLING THE BATTERY COVER .
• Refer to CONNECTING BATTERY GROUND LEAD .
• Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
• Refer to INSTALLING THE COVER OF THE HIGH-VOLTAGE SAFETY PLUG .
