Installing the battery cover at the side
Installing the battery cover at the side

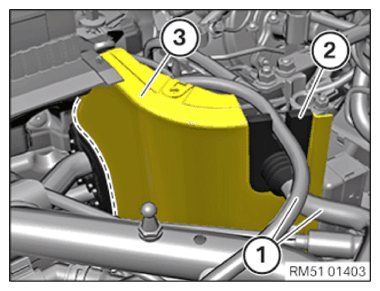

Feed in the battery cover (3) in the marked area and position it correctly.
Feed in the cable (1) with the seal (2) in the battery cover (3) and position it.
