Replacing radial shaft seal for connecting shaft, right (Cooper Clubman ALL4 models)
Special tools required:
- 23 0 490
- 2 406 191
IMPORTANT:
After completion of work, check transmission OIL LEVEL
and top up if necessary.
Failure to comply with this requirement will result in serious damage to the transfer box!
Preliminary work needed:
- Remove INTERMEDIATE SHAFT WITH SUPPORT TUBE .
Removal:
Drive a hole into radial shaft seal using a center punch.
IMPORTANT:
Do not use a drill as shavings may result in transmission malfunction.

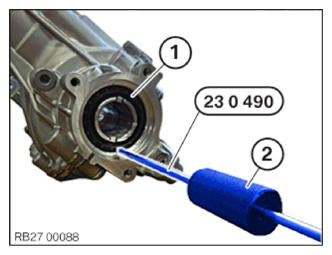

Thread special tool 23 0 490 into radial shaft seal (1).
Drive out radial shaft seal (1) with impact weight (2).
Installation:
Wet the sealing lip of the new radial shaft seal with oil.

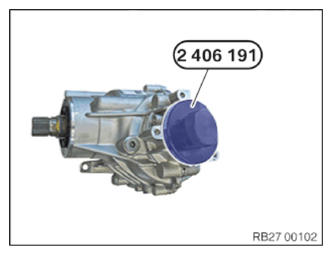

Drive shaft seal firmly home with special tool 2 406 191.
Required follow-up work:
- Install INTERMEDIATE SHAFT WITH SUPPORT TUBE .
