Removing and installing/replacing hydraulic control unit (8-speed, AISIN GA8F22AW) (Cooper Clubman base AWD, Cooper Clubman S and JCW)

IMPORTANT: After completion of work, check TRANSMISSION OIL LEVEL .

Note the amount of released automatic transmission fluid.

IMPORTANT: Use only the approved automatic transmission oil: ATF6 (BMW/MINI part number 83 22 2 355 599).

Otherwise the automatic transmission may incur extensive damage!

Do not drain oil before the transmission has cooled down.

Preliminary work needed:

Removal:

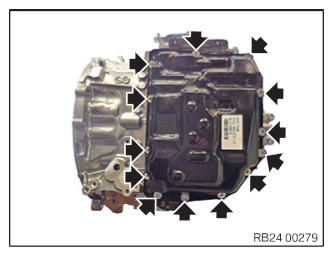

Release screws and remove cover.

G12887887Courtesy of BMW OF NORTH AMERICA, INC.

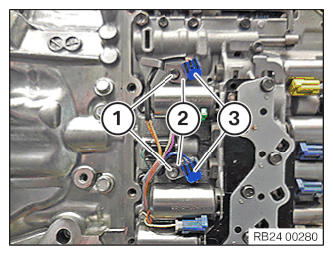

Unscrew the screws (1).

Remove locking plates (2) with oil temperature sensors (3).

G12887888Courtesy of BMW OF NORTH AMERICA, INC.

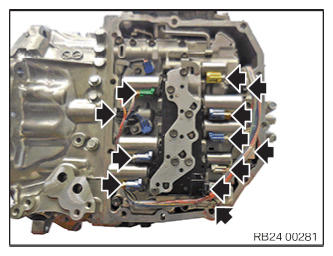

Disconnect connectors of solenoid valves.

IMPORTANT: Pay attention to routing of cables.
G12887889Courtesy of BMW OF NORTH AMERICA, INC.

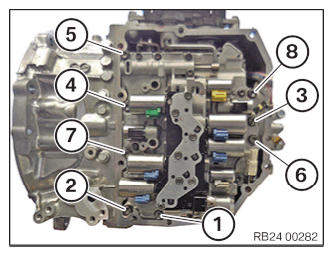

IMPORTANT: Screws have different lengths.

Numbers: 3, 4, 6, 7, 8 = 21 mm.

Numbers: 2, 5 = 31 mm.

Number 1 = 51 mm.

G12887890Courtesy of BMW OF NORTH AMERICA, INC.

Evenly release screws in specified sequence.

Fig 1: Hydraulic Control Unit Screws Loosening Sequence
G12887890Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect lever (1) from gearshift shaft.

When removing selector unit, slide in gear selector valve (2) and hold down.

Remove selector unit.

G11646077Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join shift unit to transmission.

Pull gear selector valve (2) slightly out of shift unit.

Insert lever (1) into gearshift shaft.

G11646077Courtesy of BMW OF NORTH AMERICA, INC.

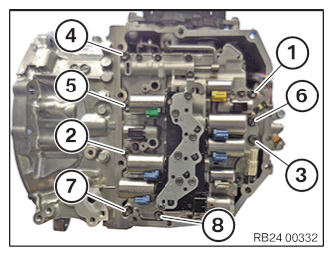

IMPORTANT: Screws have different lengths.

Numbers: 1, 2, 3, 5, 6 = 21 mm.

Numbers: 4, 7 = 31 mm.

Number 8 = 51 mm.

G12887894Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Insert screws slightly during installation, align selector unit and tighten down in specified order.

Tightening torque: 24 30 2AZ .

Fig 2: Identifying Hydraulic Control Unit Screws Tightening Sequence
G12887894Courtesy of BMW OF NORTH AMERICA, INC.

Install oil temperature sensors (3) with locking plates (2) and screw.

Tightening torque: 24 30 3AZ .

IMPORTANT: Coat the gaskets with automatic transmission fluid.
G12887888Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock connectors of solenoid valves.

G12887889Courtesy of BMW OF NORTH AMERICA, INC.

Parts:  Replace screws and cover.

Clean sealing surface of transmission.

Completely remove sealing compound.

Apply new sealing compound.

Install cover and screw.

Tightening torque: 24 30 1AZ .

G12887887Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
