51 45 030 Removing and installing instrument panel trim

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Removal:

Preliminary work needed:

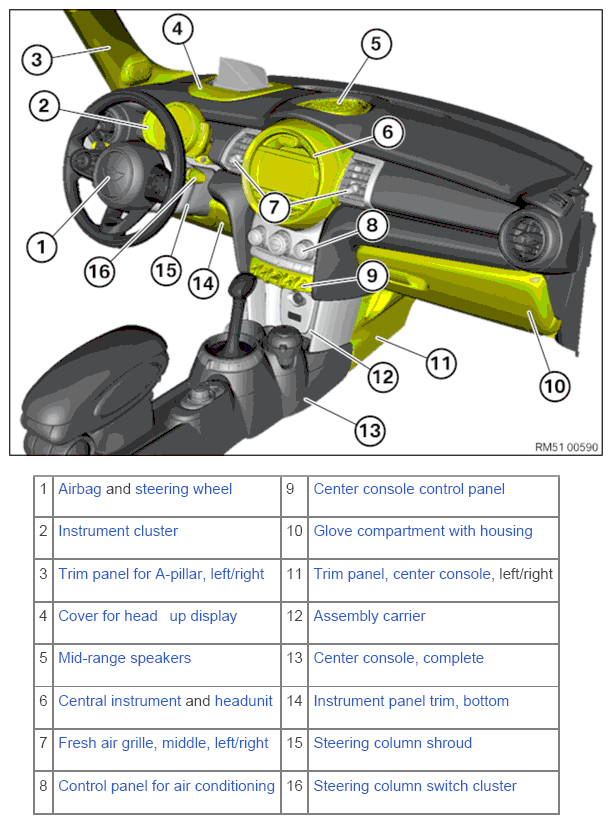

Fig 1: Instrument Panel Trim Parts Location

Courtesy of BMW OF NORTH AMERICA, INC.

The following parts must be removed as preliminary work.

For equipment specification with Head-Up Display, make sure that Head-Up Display is retracted.

Remove screw (1).

NOTE: Carry out work on the right side in the same way as for the left side illustrated here.

Fig 2: Instrument Panel Trim Screw Location

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screws (1).

Fig 3: Instrument Panel Trim Screw Location

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on passenger's side.

Fig 4: Releasing Passenger Side Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity. The wiring harness is therefore not present in the graphic.

Disconnect plug connection (1) from front passenger airbag (2).

US version only (no diagram):

Disconnect 3 plug connections (1) from front passenger airbag (2).

Fig 5: Front Passenger Airbag Module Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

(Observe the notes on AIRBAG PLUG CONNECTIONS ).

Release screws (1) on driver's side.

Fig 6: Releasing Driver Side Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the dashboard (1) with the aid of the helper and pull out all electrical lines (2).

Fig 7: Removing Dashboard

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Graphic is only an example.
Make sure that guides (1) on dashboard (2) are correctly seated in respective mountings of bulkhead.
Make sure gaskets are correctly seated on air ducts.
Insert and install foam moldings of the dashboard (2) correctly at the center.

Fig 8: Guides On Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Insert dashboard (1) with the help of a helper and connect all electrical lines (2).

NOTE: Screw dashboard (1) tightly from the middle towards outside.
Make sure all electrical lines (2) are correctly routed.

Fig 9: Removing Dashboard

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) on driver's side.

Tightening torque 51 45 1AZ .

Fig 10: Releasing Driver Side Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity. Wiring harness is therefore not available in graphic.

Connect plug connection (1) of front passenger airbag (2) and lock.

US version only (no diagram):

Connect 3 plug connections (1) of front passenger airbag (2) and lock.

Fig 11: Front Passenger Airbag Module Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

(Observe notes regarding AIRBAG PLUG CONNECTIONS ).

Tighten screws (1) on passenger's side.

Tightening torque 51 45 1AZ .

Fig 12: Releasing Passenger Side Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 51 45 1AZ .

Fig 13: Instrument Panel Trim Screw Location

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1).

Tightening torque 51 45 1AZ .

NOTE: Carry out work on the right side in the same way as for the left side illustrated here.

Fig 14: Instrument Panel Trim Screw Location

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:
