51 37 000 Removing and installing/replacing complete rear left or right power window regulator

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Release DOOR WINDOW AT REAR

NOTE: Disengage, but do not remove, the door window and secure in the door window frame.

Removal:

Unfasten plug connection (1) and disconnect.

Release nuts (2) and feed out power electric windows.

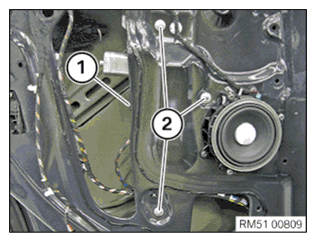

Fig 1: Removing Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replacement

Remount FLAT MOTOR for power electric windows.

Feed in power electric windows and tighten the nuts (2).

Tightening torque 51 35 5AZ .

Connect plug connection (1).

Fig 2: Removing Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
