51 22 225 Removing and installing/replacing inside door opener of rear left or right door

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove rear
Remove Bowden CABLE FOR DOOR OPENER

NOTE: Door opener is welded to door trim panel only on initial installation. During second installation, the door opener is secured by means of lock washers. If necessary, release lock washers instead of welding spots.

Removal:

Release catches (1).

Remove cover (2) from outside.

Fig 1: Removing Cover From Outside

Courtesy of BMW OF NORTH AMERICA, INC.

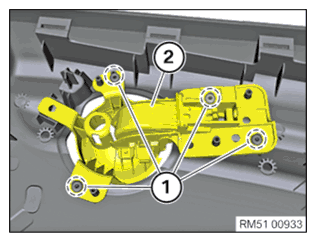

Drill out welding spots (1) on door opener (2) by means of weld spot drill bit.

Remove door opener (2).

Fig 2: Drilling Out Welding Spots On Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

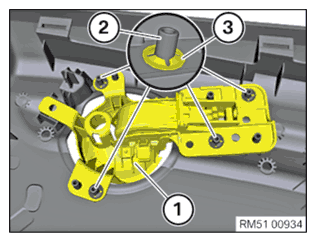

Insert new door opener (1).

Secure all welding pins (2) by means of lock washers (3).

Check door opener (1) is positioned correctly.

Fig 3: Checking Door Opener Position

Courtesy of BMW OF NORTH AMERICA, INC.

Insert the trim (2) from outside and clip into detents (1).

Fig 4: Removing Cover From Outside

Courtesy of BMW OF NORTH AMERICA, INC.
