51 22 235 Removing and installing/replacing Bowden cable for inside door opener on left or right rear door

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove DOOR TRIM PANEL FROM REAR DOOR

Removal:

Pull Bowden cable housing (1) towards the rear/top out of lock (2) - the Bowden cable automatically feeds out during this.

Fig 1: Detaching Bowden Cable Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

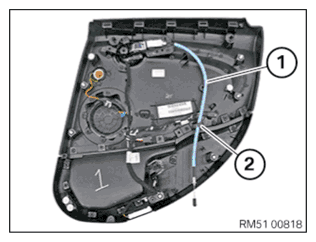

Make sure Bowden cable (1) is in correct position in holder (2).

Fig 2: Checking Bowden Cable Correct Position

Courtesy of BMW OF NORTH AMERICA, INC.

To install the Bowden cable, press the inner door handle (1) in arrow direction.

Fig 3: Pressing Inner Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Engage Bowden cable housing (1) to the front/bottom below lock (2).

Fig 4: Engaging Bowden Cable Housing To Front/Bottom Lock

Courtesy of BMW OF NORTH AMERICA, INC.
