51 43 148 Removing and installing or replacing trim panel on left or right door pillar (top)

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove TRIM PANEL FOR REAR DOOR POST

Removal:

Detach trim panel (1) from clips (2).

Feed out trim panel (1) downwards and remove.

Complete removal only:

Remove END LINING .

Feed out seat belt strap (3) and remove door pillar trim panel.

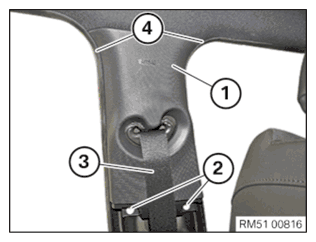

Fig 1: Removing Trim Panel For Rear Door Post

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After complete removal only:

Feed in seat belt strap (3) into door pillar trim panel.

Mount END LINING .

Feed in trim panel (1) upwards into the headlining.

Engage trim panel (1) in clips (2).

NOTE: Make sure trim panel (1) is correctly seated against edge protection (4).

Fig 2: Removing Trim Panel For Rear Door Post

Courtesy of BMW OF NORTH AMERICA, INC.
