51 43 150 Removing and installing or replacing trim for left or right door pillar (bottom)

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove FRONT DOOR SILL COVER STRIP
Remove REAR DOOR SILL COVER STRIP

Removal:

Detach trim panel (1) from clips (2).

Feed out trim panel (2) downwards.

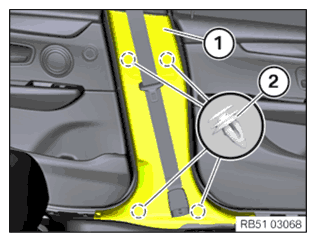

Fig 1: Detaching Trim Panel From Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in trim panel (2) upwards.

Engage trim panel (1) in the clips (2).

NOTE: Replace faulty clips (1).
Ensure edge protection is correctly positioned.

Fig 2: Detaching Trim Panel From Clips

Courtesy of BMW OF NORTH AMERICA, INC.
