51 23 212 Removing and installing/replacing cable for engine compartment lock, front (in passenger compartment)

Preliminary work needed:

• Remove LEFT WINDSHIELD PANEL COVER
• Remove FOOTWELL TRIM ON LEFT A-PILLAR

Removal:

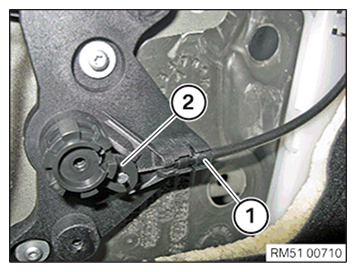

Disengage cable (1) at lever (2).

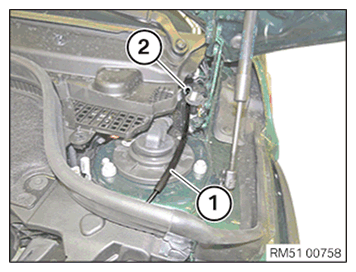

If necessary, detach the traction (1) from the clips to the bulkhead.

Fig 1: Detaching Traction From Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Lift and open the clutch (1) from the door lock support (2).

Disengage cable (3).

Fig 2: Removing Coupling From Lock Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Version 1:

Detach cable (1) from holder (2).

Feed out cable (1) with grommet (3) out of bulkhead.

Fig 3: Feeding Out Cable With Grommet Out Of Bulkhead

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2 with shorter Bowden cable:

Feed out cable (1) with grommet (2) out of bulkhead.

Fig 4: Feeding Out Cable With Grommet Out Of Bulkhead

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Version 1:

Feed in cable (1) with grommet (3) into bulkhead.

Attach cable (1) in holder (2).

Ensure grommet (3) is correctly fitted on bulkhead.

Fig 5: Feeding Out Cable With Grommet Out Of Bulkhead

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2 with shorter Bowden cable:

Feed in cable (1) with grommet (2) into bulkhead.

Fig 6: Feeding Out Cable With Grommet Out Of Bulkhead

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2 with shorter Bowden cable (RHD):

Fig 7: Feeding Cable With Grommet Into Bulkhead (Version 2 With Shorter Bowden Cable)

Courtesy of BMW OF NORTH AMERICA, INC.

Attach cable (3).

Clip in and close the clutch (1) into the door lock support (2).

Fig 8: Removing Coupling From Lock Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, attach the traction (1) from the clips to the bulkhead.

Attach cable (1) on lever (2).

Fig 9: Detaching Traction From Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Attach LEFT WINDSHIELD PANEL COVER
• Install FOOTWELL TRIM ON LEFT A-PILLAR
