51 33 000 Removing and installing (replacing) the power window regulator in the left or right front door

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove FRONT DOOR WINDOW GLASS

Removal:

Unfasten plug connection (1) and disconnect.

Release nuts (2) and feed out power electric windows (3) from door.

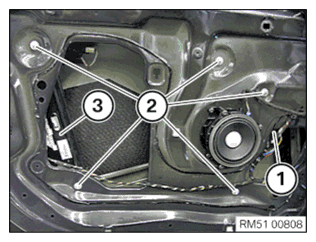

Fig 1: Power Electric Windows Nuts Location

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remount FLAT MOTOR .

Installation:

Feed power electric windows (3) into door.

Tighten down nuts (2).

Tightening torque 51 33 1AZ .

Connect plug connection (1).

Fig 2: Power Electric Windows Nuts Location

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install FRONT DOOR WINDOW GLASS
