51 21 126 Removing and installing/replacing support for left or right outer door handle without lock cylinder

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove OUTER HANDLE
Remove FRONT SOUND INSULATION

Removal:

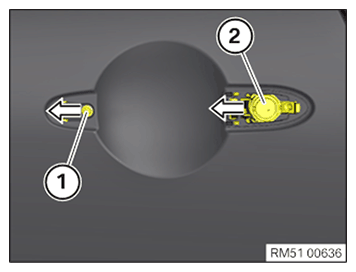

Remove screw (1).

Slide support (2) forwards and feed out inwards.

Feed out support (1) from door.

Fig 1: Removing Front Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

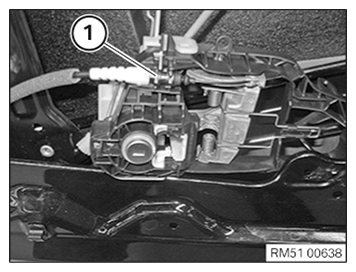

Detach cable (1) and remove support.

Fig 2: Detaching Support Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach cable (1).

Feed in support (1) into door.

Fig 3: Detaching Support Cable

Courtesy of BMW OF NORTH AMERICA, INC.

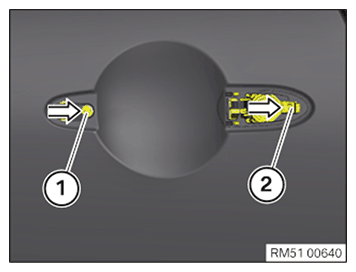

Feed in support (2) into mounting towards the rear.

Tighten screw (1).

Tightening torque 51 21 6AZ .

Fig 4: Feeding Support Into Mounting

Courtesy of BMW OF NORTH AMERICA, INC.
