51 47 151 Removing and installing/replacing left/right trunk wheel arch trim

Preliminary work needed:

• Remove COVER FROM TAIL PANEL

REMOVAL:

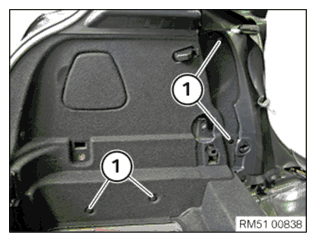

Remove covers (1), release screw underneath and remove lashing points.

Detach cover (2).

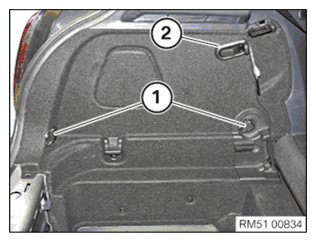

Fig 1: Removing Cover From Tail Panel

Courtesy of BMW OF NORTH AMERICA, INC.

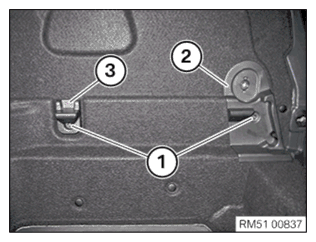

Release screws (1) and remove trim (2) and holder (3).

Fig 2: Removing Trim And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release expanding rivet (1).

Feed out and remove trunk wheel arch panel.

Fig 3: Releasing Expanding Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

Feed in trunk wheel arch panel.

Mount expanding rivets (1).

Fig 4: Releasing Expanding Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

Install trim (2) and holder (3).

Tighten down screws (1).

Fig 5: Removing Trim And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Install lashing points and tighten screws.

Tightening torque 51 71 2AZ .

Mount covers (1).

Mount cover (2).

Fig 6: Removing Cover From Tail Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install COVER ON TAIL PANEL
