51 13 402 Removing and installing/replacing the trunk lid handle

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove TAILGATE TRIM PANEL

Removal:

Unscrew the screws (1).

Fig 1: Removing Tailgate Trim Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Detach the trunk lid handle (1) from the trunk lid, unlock and disconnect the associated plug connections.

Remove trunk lid handle (1).

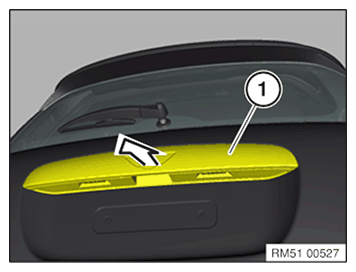

Fig 2: Detaching Trunk Lid Handle From Trunk Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replacement:

If necessary, remount the REAR VIEW CAMERA

Position trunk lid handle.

Connect plug connections.

Tighten down screws (1).

Fig 3: Removing Tailgate Trim Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.
