66 53 020 Removing and installing (replacing) reversing camera

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove TAILGATE HANDLE STRIP

Removal:

Release screws (1).

Remove rear view camera (2) from tailgate handle strip (3).

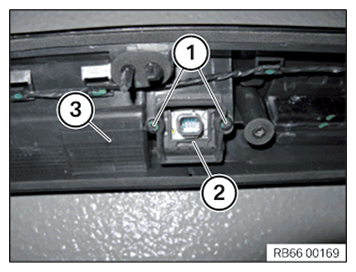

Fig 1: Locating Reversing Camera Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert rear view camera (2) correctly into tailgate handle strip (3).

Tighten down screws (1).

Fig 2: Locating Reversing Camera Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Carry out reversing camera function check

Replacement:

Carry out PROGRAMMING/ENCODING .
