51 13 305 Removing and installing/replacing left or right roof railing

Preliminary work needed:

• Lower HEADLINING

Removal:

Unscrew nuts (1).

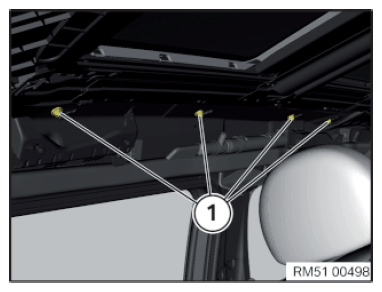

Fig 1: Roof Railing Slacken Top Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove roof rails (1).

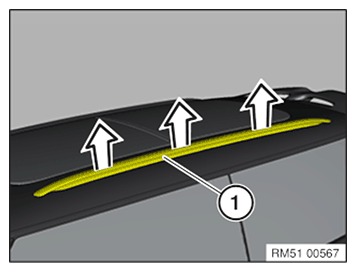

Fig 2: Removing Roof Rails

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Gasket on roof rails (2) must not be damaged.

Replace butyl cord around the threaded bolt (1) (use 4 mm diameter butyl cord).

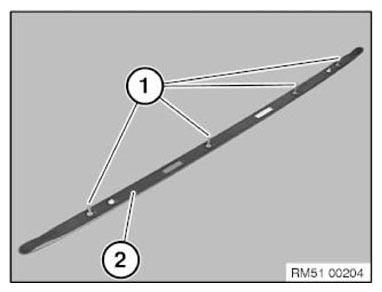

Fig 3: Seals On Roof Railing And Threaded Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Put compensating element (1) on the roof outer skin by twisting the hexagon head (2).

Tightening torque 51 13 9AZ .

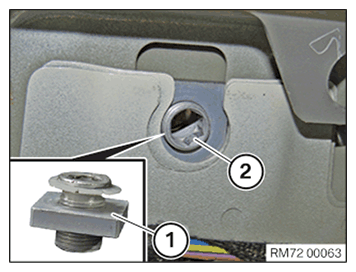

Fig 4: Roof Outer Skin Compensating Element Location

Courtesy of BMW OF NORTH AMERICA, INC.

Mount the roof rails.

Replace nuts (1).

Tighten down nuts (1).

Tightening torque 51 13 5AZ .

Fig 5: Roof Railing Slacken Top Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Fit the HEADLINING
