51 71 096 Removing and installing/replacing the automatic air flap control

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove front BUMPER COVER
Remove impact absorber from support

Removal:

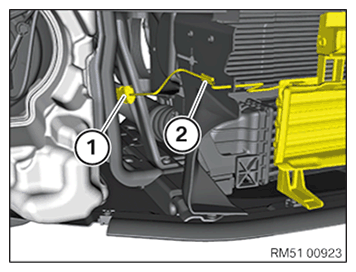

Unfasten plug connection (1) and disconnect.

Unfasten cable tie (2).

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screws (1).

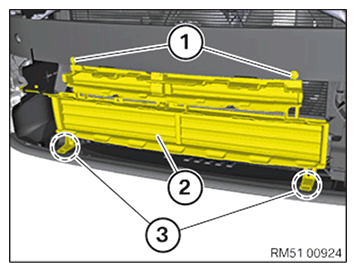

Feed out the air flap control (2) in area (3) and remove the support.

Fig 2: Feeding Out Air Flap Control

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in air flap control (2) and suspend in the support in area (3).

Tighten down screws (1).

Tightening torque 51 71 6AZ .

Fig 3: Feeding Out Air Flap Control

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1).

Attach cable clip (2).

Fig 4: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
