51 12 828 Removing and installing/replacing guide for bumper, rear left or right

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove SUPPORT FOR BUMPER AT REAR

Removal:

Remove screw (1).

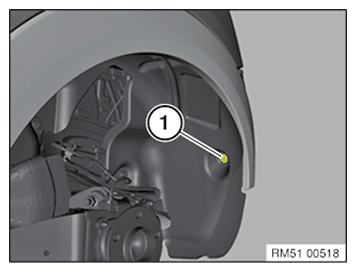

Fig 1: Removing Support For Rear Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Detach cable (2) and remove guide (3).

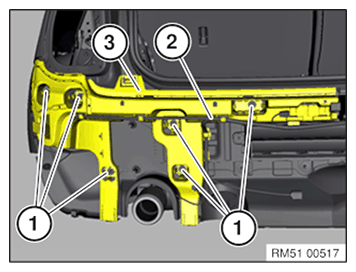

Fig 2: Detaching Guide Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Place guide (3) and fix with nuts (1).

Tightening torque 51 12 2AZ .

Attach cable (2).

Fig 3: Detaching Guide Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1).

Fig 4: Removing Support For Rear Bumper

Courtesy of BMW OF NORTH AMERICA, INC.
