51 12 050 Removing and installing/replacing support for rear bumper panel

WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work needed:

Remove BUMPER COVER

Removal:

Slacken nuts (1) and remove support (2).

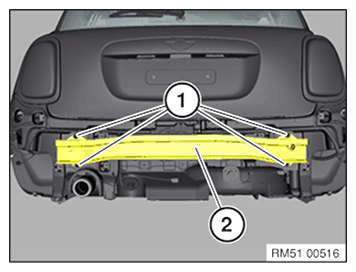

Fig 1: Removing Support Slacken Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Replace nuts (1).

Position support (2) and secure with nuts (1).

Tightening torque 51 12 1AZ .

Fig 2: Removing Support Slacken Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
