51 11 760 Remove and install/replace deformation element for front left bumper
WARNING: This page is about a different car, the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work needed:
- Removing SUPPORT FOR TOP FRONT BUMPER COVER
Removal:

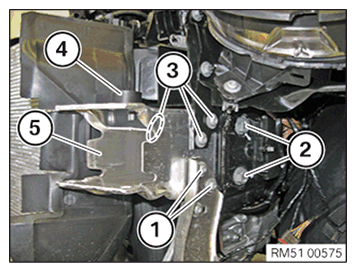

Remove screws (1 to 4).
Pull out deformation element (5).
Installation:
Insert deformation element (5).
Tighten screws (1 to 4).
| Screw | Tightening torque |
|---|---|
| (1) | 51 11 4AZ |
| (2) | 51 11 6AZ |
| (3) | 51 11 4AZ |
| (4) | 51 11 9AZ |
