33 32 077 Removing and installing/replacing top right wishbone

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the top wishbone is detached from the rear axle support, wheel alignment must be carried out after installation. Refer to ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .

Necessary preliminary tasks:

Remove REAR WHEEL .
Remove TANK COVER on left and right.
If necessary, remove compact spare wheel.

Removal:

Only for right ride height sensor:

Release screws (1) for jointed rod on wishbone.

Fig 1: Screws For Wishbone Jointed Rod

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut and remove screw (2).

Release nut and remove screw (1).

Take off wishbone (3).

Installation note:

Tighten screw connection (1) in NORMAL POSITION .

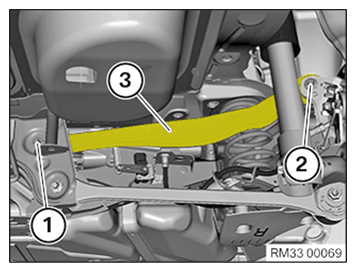

Fig 2: Wishbone And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Align wishbone (3).

Insert bolt (2) and tighten new nut.

Replace nut.

Tightening torque, 33 32 1AZ .

Insert bolt (1) and screw on new nut.

Do not yet apply torque!

Fig 3: Wishbone And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replace nut.

Move vehicle into NORMAL POSITION .

Tighten nut of bolt (2) in normal position.

Tightening torque 33 32 3AZ .

Only for right ride height sensor:

Tighten screws (1) for jointed rod on wishbone.

Tightening torque, 37 14 5AZ .

Fig 4: Screws For Wishbone Jointed Rod

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Perform wheel alignment check. Refer to ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
