33 32 021 Replacing left or right trailing arm

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRAILING ARM COVER .
Remove TRAILING ARM .

Removal:

IMPORTANT: When removing the brake disc: Do not under any circumstances strike friction ring with a hammer or similar! If necessary, carefully tap with a rubber mallet against the brake disc chamber.

Release screw (1) and remove brake disc (2).

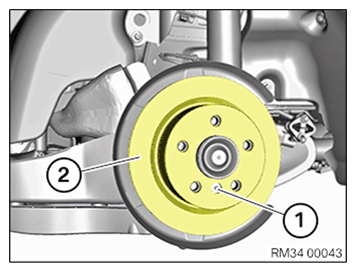

Fig 1: Brake Disc Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove brake guard plate (2).

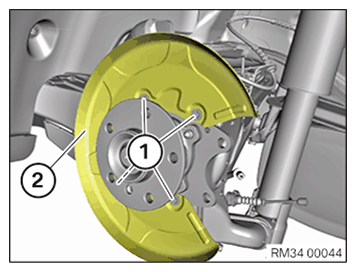

Fig 2: Brake Guard Plate And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Remove wheel bearing.

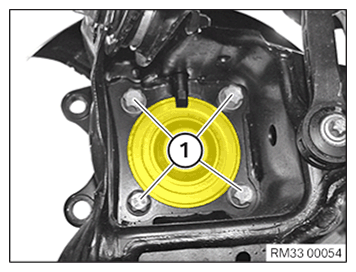

Fig 3: Wheel Bearing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Pull out screw.

Remove the trailing arm bearing support (2).

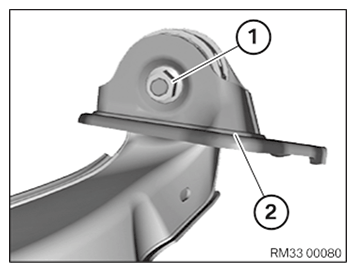

Fig 4: Trailing Arm Bearing Support And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

The bore holes for the brake guard plate screw connection and shock absorber do not have a thread with the new trailing arm. This is a self-tapping screw connection.

Position trailing arm bearing support (2) on new trailing arm.

Replace nut (1).

Insert bolt and screw on nut (1).

Adjust dimension A of the trailing arm bearing support in relation to the trailing arm.

Dimension A = 18 mm (± 3 mm)

Tighten nut (1).

Tightening torque 33 32 4AZ .

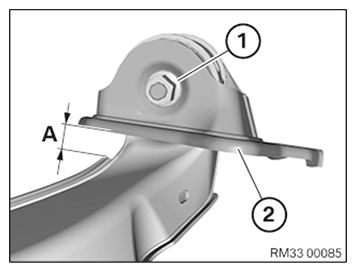

Fig 5: Adjusting Trailing Arm Bearing Support

Courtesy of BMW OF NORTH AMERICA, INC.

Keep contact surfaces (1) of wheel carrier and wheel bearing (hub) clean and free from oil and grease.

Align wheel bearing on trailing arm.

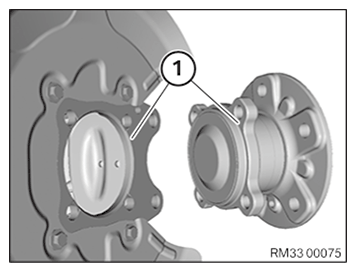

Fig 6: Contact Surfaces Of Wheel Carrier And Wheel Bearing (Hub)

Courtesy of BMW OF NORTH AMERICA, INC.

Replace screws (1).

Tighten down screws (1).

Tightening torque 33 41 1AZ .

Fig 7: Wheel Bearing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Position brake guard plate (2) on trailing arm.

Replace screws (1).

Tighten down screws (1).

Tightening torque 34 21 4AZ .

Fig 8: Brake Guard Plate And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Install brake disc (2).

Replace screw (1).

Tighten screw (1).

Tightening torque 34 21 1AZ .

Fig 9: Brake Disc Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Carry out wheel alignment procedure. Refer to ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
