33 32 185 Removing and installing/replacing left or right trailing arm
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Removal:

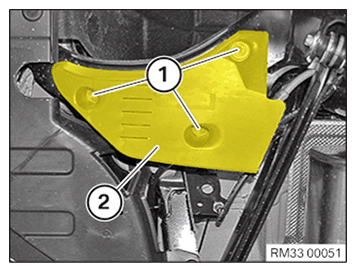

Release screws (1).
Remove cover (2).
Installation:
Align cover (2) to trailing arm.
- Observe side designation (L = left or R = right) on cover.
Screw in and tighten screws (1).
Tightening torque 33 32 6AZ
