11 65 300 Removing and installing/replacing electrical controller drive for wastegate valve (B48, B46): Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For vehicles with production date after 02/2016, the exhaust turbocharger and the repair kit "electrical controller drive for wastegate valve" has been changed.

For vehicles with production date up to and including 02/2016, the electrical controller drive with the part number 8 660 987 must be ordered and used.

For vehicles with production date after 02/2016, the electrical controller drive with the part number 7 850 453 and the heat protection 8 671 960 must be ordered and used.

Overview of electrical controller drive for wastegate valve - vehicle production up to and including 01/2016:

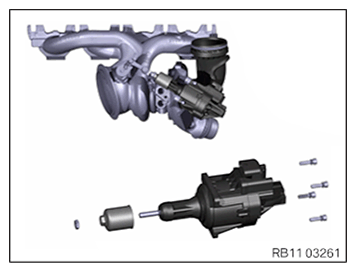

Fig 1: Overview Of Electrical Controller Drive For Wastegate Valve - Vehicle Production Up To / Including 01/2016

Courtesy of BMW OF NORTH AMERICA, INC.

Overview of electrical controller drive for wastegate valve - vehicle production from 02/2016:

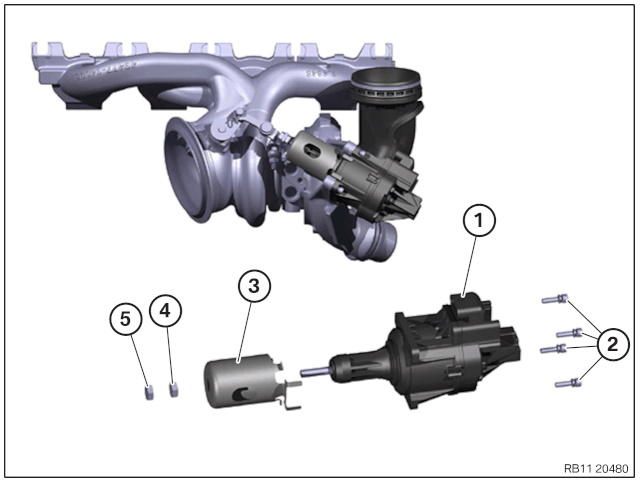

Fig 2: Overview Of Electrical Controller Drive For Wastegate Valve - Vehicle Production From 02/2016

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:
