Replace combination disc (Head-Up Display) (Cooper Convertible)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 64 1 020
- 00 9 030
IMPORTANT:
Read and comply with NOTES
on protection against electrostatic damage (ESD PROTECTION).
IMPORTANT:
Risk of damage!
Do not scratch glass pane of head-up display.
Preliminary work needed:
- Remove TRIM for head-up display.
- Connect diagnostic system
Removal:
Fold out service flap (1) in arrow direction.
NOTE:
Undo the service flap (1) at the side using special tool 64 1 020.

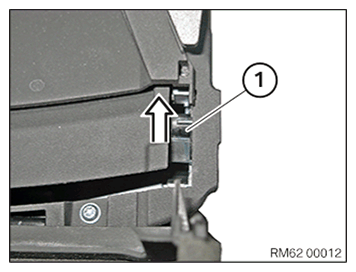

Open the lock (1) in arrow direction on both sides with special tool 00 9 030.

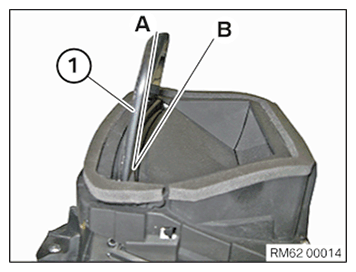

Bring the combination disc (1) into the service position (B) using the diagnostic system.

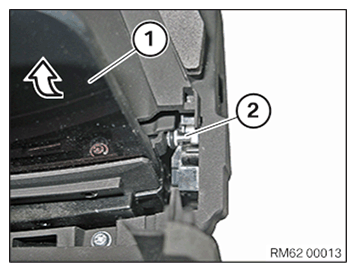

Feed the combination disc (1) out of the Head-Up Display (2) in arrow direction.
Installation:

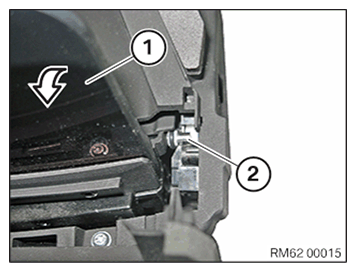

Feed the combination disc (1) into the Head-Up Display (2) in arrow direction.
Break-in the combination disc (1) in the Head-Up Display using the diagnostic system.

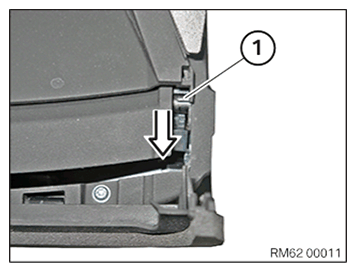

Close the lock (1) in arrow direction on both sides with special tool 00 9 030.
Close service cover (1) in arrow direction.
NOTE:
Make sure the service flap (1) is properly engaged.
Required follow-up work:
- Install the TRIM for the head-up display.
