65 12 320 Removing and installing (replacing) Headunit Basis (Cooper Convertible)

Attention!

Risk of damage!

There is a hard disk installed in the headunit.

Carry out mechanical work on the headunit and adjacent components with vehicle care.

Avoid subjecting the headunit to vibration/shocks.

Attention!

Read and comply with NOTES on protection against electrostatic damage (ESD protection).

Preliminary work needed:

• Remove CENTRAL INSTRUMENT .
• Disconnect BATTERY GROUND LEAD.
• Remove (replace) version 2 center left FRESH AIR GRILLE .
• Remove (replace) version 2 center right FRESH AIR GRILLE .

Removal:

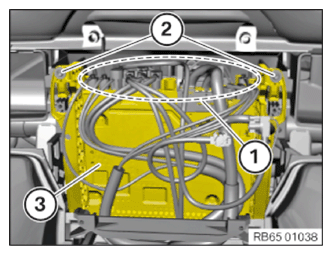

Unlock plug connections. (1) and disconnect.

Unscrew the screws (2).

Remove headunit (3).

Courtesy of BMW OF NORTH AMERICA, INC.

The number of connectors may vary depending on the equipment specification.

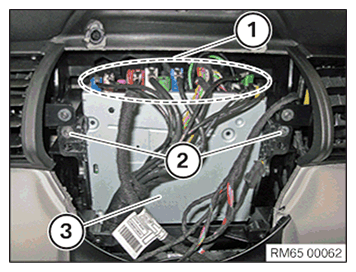

Unlock plug connections. (1) and disconnect.

Unscrew the screws (2).

Remove headunit (3).

Courtesy of BMW OF NORTH AMERICA, INC.

For replacement:

Unscrew the screws (1).

Take off holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position headunit (3).

Tighten down screws (2).

Join and lock all plug connections (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Only for US models with SDARS:

Additional work is required when replacing the headunit!

• Refer to REPLACING SDARS as of 09/2009.

Required follow-up work:

• Install CENTRAL INSTRUMENT .
• Connect BATTERY GROUND LEAD.

For replacement:

Carry out PROGRAMMING/CODING .

On vehicles with a production date as from 07/2015, install the correct NAVIGATION MAP .

Importing the Service history:

• 05 Maintenance and Pre-Delivery Check
• Service history
