65 12 071 Removing and installing or replacing amplifier (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES on protection against electrostatic discharge (ESD protection).

NOTE: Comply with NOTES on handling optical fibers.

Preliminary work needed:

Disconnect cable from BATTERY GROUND LEAD.
Open LOADING AID

Removal:

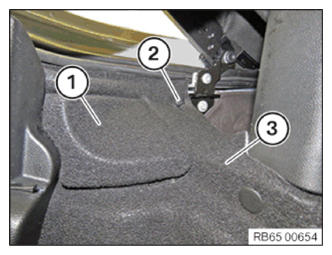

Remove the flap (1).

Release expanding rivet (2).

Shift the luggage compartment wheel arch trim panel (3) on the left to one side.

G13799419

Courtesy of BMW OF NORTH AMERICA, INC.

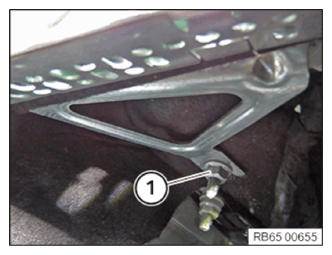

Slacken nut (1).

G13799420

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts at marked points.

Unlock and disconnect the connector (1).

Feed out amplifier (3) with holder.

G13799421

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

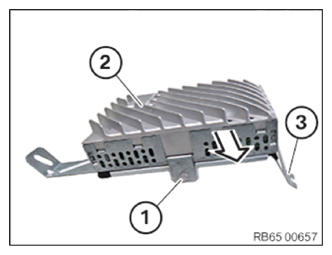

Remove screw (1).

Remove the amplifier (2) from the holder (3) in the direction of the arrow.

G13799422

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Lugs (1) must be correctly slid into guide (2).

Check that amplifier (3) is securely seated.

G04797335

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in amplifier (2) and position correctly.

Tighten the nuts at the marked points.

Attach and lock connector (1).

G13799421

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (1).

G13799420

Courtesy of BMW OF NORTH AMERICA, INC.

Correctly position the left luggage compartment wheel arch trim panel (3).

Fasten the expanding rivet (2).

Install the flap (1).

G13799419

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Connect BATTERY GROUND LEAD.
Close the LOADING AID

Replacement:

Carry out PROGRAMMING/CODING for Harman Kardon equipment specification.
