REP-TAT-P-2421-02 Installing the radial shaft seal for the gearshift shaft (8-speed, AISIN GA8F22AW)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
- Coat sealing lips of new radial shaft seal with clean transmission oil.

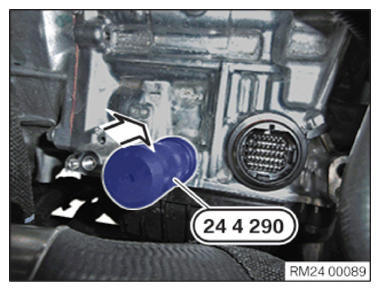

- Drive in the radial shaft seal to the stop in arrow direction using special tool 0 495 249 (24 4 290).
Follow-up work:
- Refer to INSTALLING CONTROL UNIT
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING INTAKE PORT
- Refer to CONNECTING THE BATTERY GROUND LEAD
