REP-TAT-P-2461-02 Installing control unit (8-speed, AISIN GA8F22AW)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

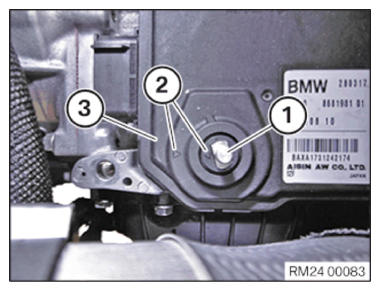

- Before installing control unit (3) , turn lever (1) so that arrows (2) point to one another.

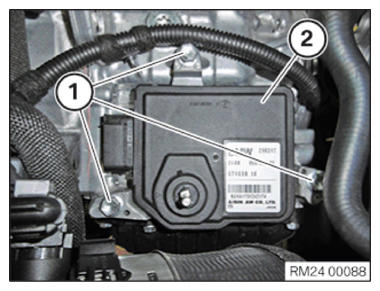

- Tighten screws (1) on control unit (2) .
TIGHTENING TORQUES SPECIFICATION
| Control unit to transmission | |
|---|---|
| M8 | |
| Tightening torque | |
| 25Nm | |

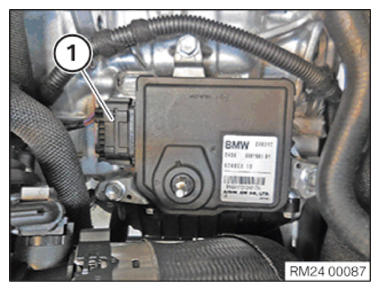

- Connect connectors (1) and lock.
Follow-up work:
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING INTAKE PORT
- Refer to CONNECTING THE BATTERY GROUND LEAD
