Replacing rear ride height sensor (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

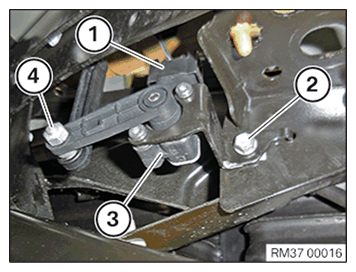

Removal:

Disconnect plug connection (1).

Slacken nut (4).

Detach the jointed rod on the lever of the sensor.

Release screw (2).

Remove ride height sensor (3).

Courtesy of BMW OF NORTH AMERICA, INC.

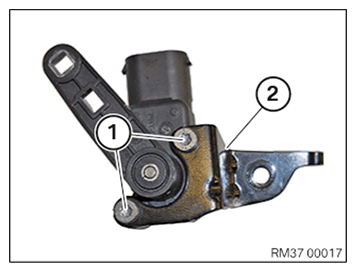

Unscrew the screws (1).

Take off holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position holder (2) on ride height sensor.

Tighten down screws (1).

Tightening torque 37 14 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Position ride height sensor (3) with holder on rear axle support.

Tighten screw (2).

Tightening torque 37 14 3AZ .

Connect plug connection (1).

Attach the jointed rod on the lever of the sensor.

Tighten nut (4).

Tightening torque 37 14 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Check HEADLIGHT ADJUSTMENT , correct if necessary.
