Adjusting headlights (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Comply with test preconditions for HEADLIGHT ADJUSTMENT .

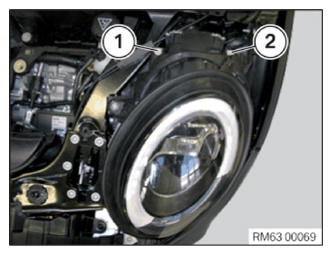

Carry out headlight adjustment at adjustment screws (1) and (2).

Adjustment screw (1) - priority for vertical adjustment

Adjustment screw (2) - priority for lateral adjustment

A definite allocation of adjustment screws is not possible.

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out height adjustment at adjustment screw (1)
US version only:

Only set the lateral adjustment if the safety plug in the LATERAL ADJUSTMENT SCREW is missing or damaged.

If necessary, remove damaged plugs using a suitable tool.
Carry out lateral adjustment at adjustment screw (2)

After headlight adjustment:

Perform reference run. For this purpose, switch off and on the headlights. Check again headlight adjustment.

US version only:

If the lateral adjustment has been checked and corrected, push new plug into the adjustment screw for the lateral adjustment without damaging it.
