Replacing controller for heating and air conditioning system blower
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work needed:
- Disconnect BATTERY GROUND LEAD.
Removal:
NOTE:
The controller for the blower is located in the footwell on the left behind the heating and air-conditioning unit.

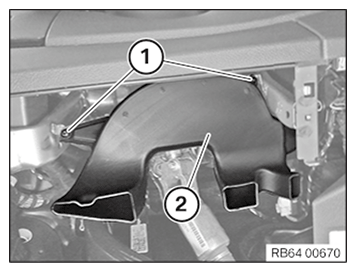

On version with air duct:
Unscrew the screws (1).
Feed out air duct (2).

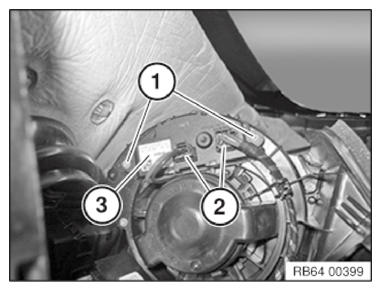

Unscrew the screws (1).
Unlock plug connections (2) and disconnect.
Remove controller (3).
Installation:
Position controller (3) correctly.
Tighten down screws (1).
Join and lock plug connections (2).
On version with air duct:
Feed in air duct (2).
Tighten down screws (1).
Required follow-up work:
- Connect BATTERY GROUND LEAD.
