Removing and installing/replacing right charge-air duct (B36 engine) (Cooper base)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Safety instructions:

In the event of a leak at the pressure pipe, there is a risk of damage on the exhaust turbocharger!

Preliminary work needed:

Remove front right WHEEL ARCH PANEL .
Remove front UNDERBODY PROTECTION .
Remove THRUST FIELD .

Removal:

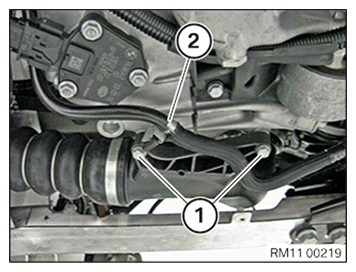

Loosen screws (1)

Unclip line (2).

G11645410

Courtesy of BMW OF NORTH AMERICA, INC.

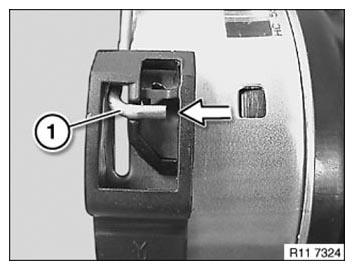

NOTE: Locks (1) must engage in holders (see arrow).

G06853139

Courtesy of BMW OF NORTH AMERICA, INC.

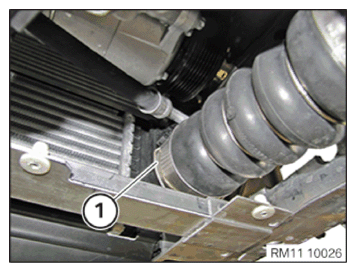

Unlock lock (1) on both sides with suitable tool.

Detach charge air duct from charge air cooler.

G11790358

Courtesy of BMW OF NORTH AMERICA, INC.

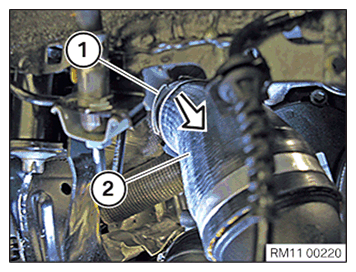

Unlock lock (1) on both sides with suitable tool.

Detach charge air duct (2) from exhaust turbocharger.

G11645413

Courtesy of BMW OF NORTH AMERICA, INC.

Remove charge air duct (1) towards bottom.

G11790360

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

IMPORTANT: In the event of a leak on the charge air duct, there is a risk of damage to the exhaust turbocharger!

Check sealing lip (1) for damage.

NOTE: If sealing lip (1) is damaged, the gasket must be replaced.

G11645417

Courtesy of BMW OF NORTH AMERICA, INC.

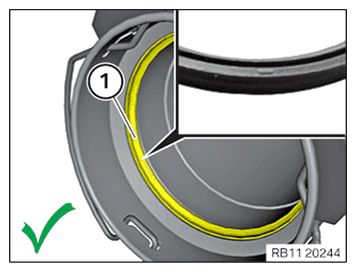

Installation note:

Check that the seal (1) is fitted correctly:

The seal (1) appears to be fitted correctly in the pressure pipe.

G11645418

Courtesy of BMW OF NORTH AMERICA, INC.

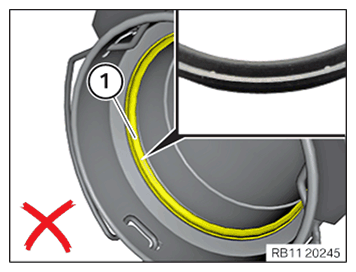

Installation note:

Check that the seal (1) is fitted correctly:

The seal (1) appears to be fitted incorrectly in the pressure pipe.

G11645419

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Release locks (1) from holders.

Locks must engage.

G11645423

Courtesy of BMW OF NORTH AMERICA, INC.

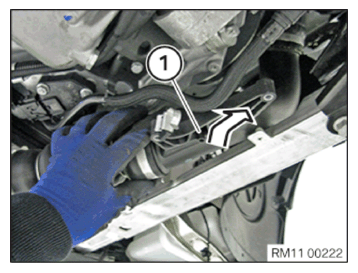

Install charge air duct (1).

G11790365

Courtesy of BMW OF NORTH AMERICA, INC.

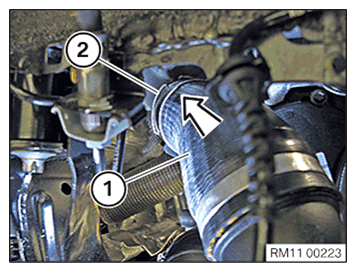

Connect charge air duct (1) to exhaust turbocharger until lock (2) engages on both sides.

G11645424

Courtesy of BMW OF NORTH AMERICA, INC.

Connect charge air duct (1) to charge air cooler until lock (1) engages on both sides.

G11790358

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque: 11 00 2AZ .

Clip in line (2).

G11645410

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install front UNDERBODY PROTECTION .
Install THRUST FIELD .
Install front right WHEEL ARCH PANEL .
Check turbocharging path for leak tightness.
Check function of DME.
