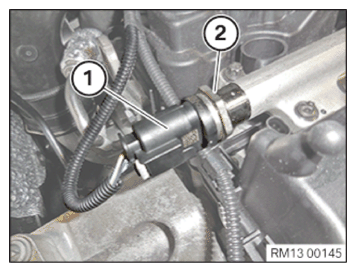

Replacing the rail pressure sensor (B36, B38) (Cooper)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES on protection against electrostatic discharge (ESD protection).

WARNING: Observe warning on cylinder head cover.
Disconnect BATTERY GROUND LEAD. (risk of fire due to short circuit on dismantling).
Electric fuel pump starts up automatically when door is opened!
Carry out installation work on fuel system only with coolant temperature below 40°C.

IMPORTANT: Wear full face guard and hand protection.
Gas can emerge spontaneously at high speed when the high pressure line is released!

IMPORTANT: Adhere to conditions of absolute cleanliness when carrying out repairs on the high- pressure fuel system.
Introduced contaminants can cause malfunctions in the system!

Do not allow any dirt particles or foreign bodies to get into the system.
Remove all traces of contamination before removing lines or separate components.
Use only lint-free cloths.
Seal all fuel system openings with protective caps or plugs.

Recycling :

Fuel leakages when fuel lines are detached.

Catch and dispose of leakage fuel in a suitable container.

Observe country-specific waste disposal regulations.

Preliminary work needed:
