41 12 700 Replacing luggage compartment floor and side member on the left or right (rear side panel and tail panel removed): Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Shown on left side (right side identical).

Read contents of BODY, GENERAL .

Follow procedure for REPAIR STAGE 3 .

Strip down vehicle. See STRIPPING OPERATIONS - LEFT SIDE  or STRIPPING OPERATIONS - RIGHT SIDE .

Spot-weld bonding is used on this vehicle.

Observe specific PROCEDURE .

Place vehicle on straightening bench.

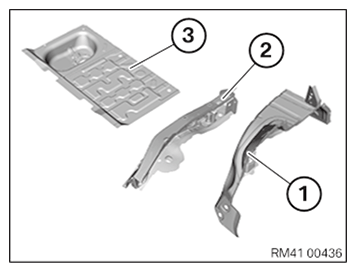

The following new parts are required:

The following CONSUMABLES  are required:

Material Quantity
Adhesive K5a 2
Blind rivet N3 25
EMC screw 5
Cleaning agent R1 1
Sealant D1

Removal:

NOTE: If required, also replace C-PILLAR REINFORCEMENT .

Mark severance cut (1) in accordance with dimension "a" and cut.

Dimension "a" = 30 mm from component edge, cross-member.

Open WELDED CONNECTIONS  in areas (2).

Remove the luggage compartment floor.

Fig 2: Severance Cut Mark And Welded Connections Areas
G11648769Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: New part is installed with overlap in area of severance cut (1).

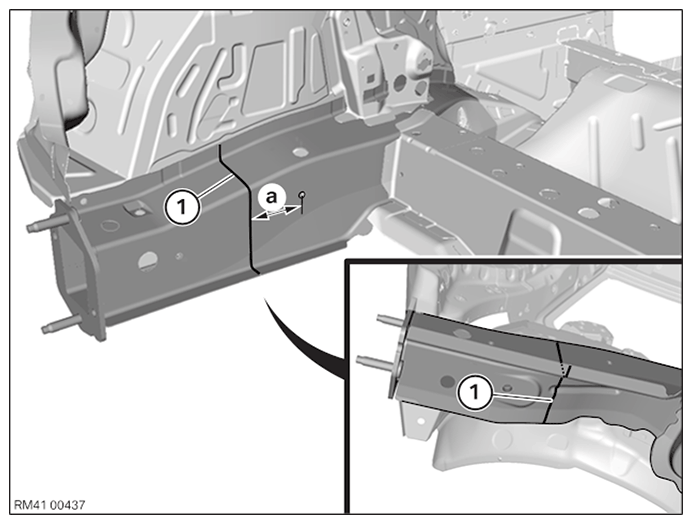

Mark severance cut (1) in accordance with dimension "a" and cut.

Dimension "a" = 82 mm from 8 mm dia. hole.

Fig 3: Severance Cut Mark
G11648783Courtesy of BMW OF NORTH AMERICA, INC.

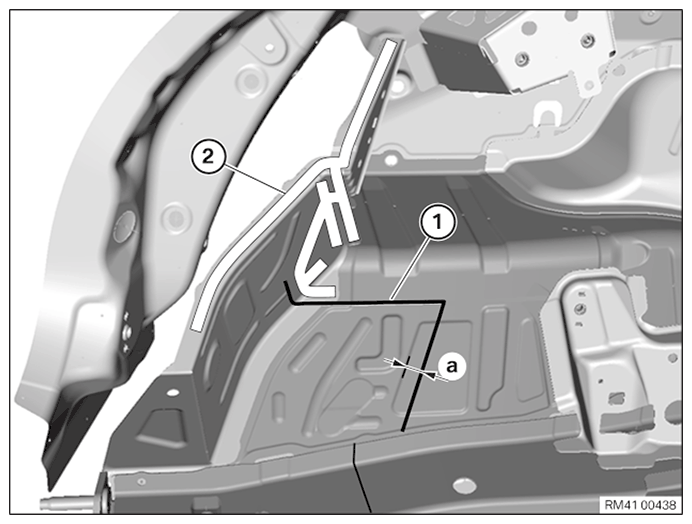

Mark severance cut (1) in accordance with dimension "a" and cut.

Dimension "a" = 10 mm from the edge of the embossing.

Open WELDED CONNECTIONS  in areas (2).

Fig 4: Severance Cut Mark And Welded Connections Areas
G11648784Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with specified dimension and cut.

IMPORTANT: Cut outer panel only.

Dimension "a" = approx. 145 mm from component edge, reinforcement.

Release WELDED CONNECTIONS  in areas (2) and remove side member.

(3) = severance cut from prior operation.

Fig 5: Outer Panel Severance Cut Mark, Prior Severance Cut, And Welded Connections Areas
G11648785Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

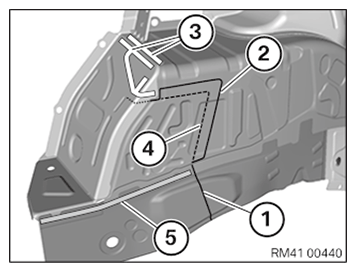

Mark severance cut (1) in accordance with severance cut on vehicle and cut.

Prepare REINFORCEMENT PLATE  for severance cut (1).

Mark severance cut (2) in accordance with severance cut on vehicle +15 mm extra material and cut.

Open WELDED CONNECTIONS  in areas (3).

(4) = Severance cut route on vehicle.

Prepare new part for joining by welding.

NOTE: Spot-weld bonding is used as standard for joining in area (5).

Observe the specific PROCEDURE  in the repair.

Fig 6: Severance Cut Marks, Welded Connections Areas, And Spot-Weld Bonding Area
G11648786Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with severance cut on vehicle and cut.

Prepare reinforcement plate for severance cut (1).

Prepare new part for joining by welding.

Adjust new parts side member and wheel arch using alignment bracket or universal mount and secure.

Fig 7: Severance Cut Mark
G11648787Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut on new part in accordance with severance cut on vehicle + 15 mm for extra material and cut.

Adjust luggage compartment floor in combination with tail panel to fit and secure.

In areas (1) and (2), set 4.2 mm bore holes for blind rivets.

Fig 8: Blind Rivet Bore Holes Areas
G11648770Courtesy of BMW OF NORTH AMERICA, INC.
Area Number
1 11
2 7 of

Remove new parts and deburr bore holes.

IMPORTANT: Do not grind new part for the luggage compartment floor and body in area of bonding surfaces!

Installing side member and wheel arch:

Install new parts using an alignment bracket or universal mount.

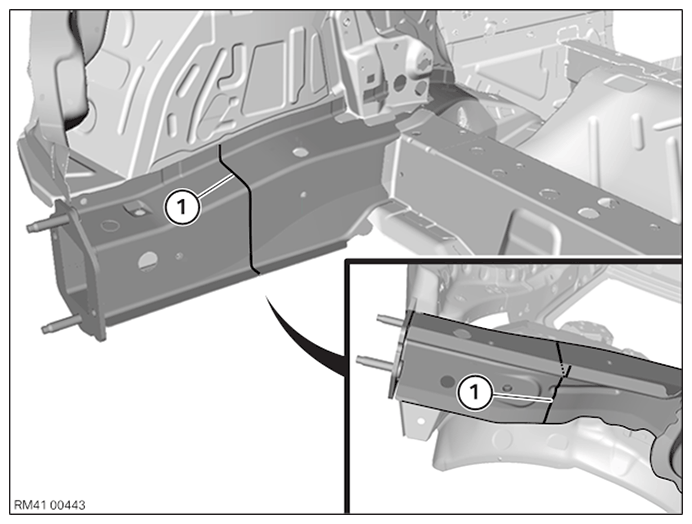

Weld new parts and reinforcement plates in area of severance cut (1).

Fig 9: Severance Cut Welding Area
G11648789Courtesy of BMW OF NORTH AMERICA, INC.

Weld new parts and reinforcement plate at severance cuts (1) and in areas (2).

Fig 10: Severance Cuts/Welding Areas
G11648790Courtesy of BMW OF NORTH AMERICA, INC.

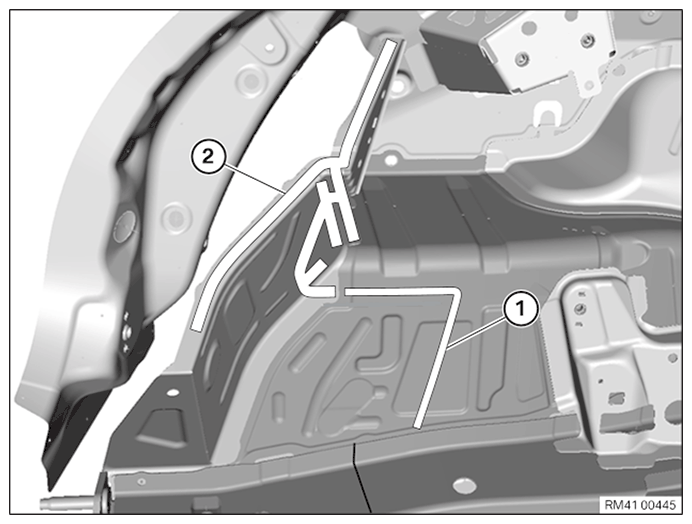

Weld new parts in areas (1) and (2).

Fig 11: Welding Areas
G11648791Courtesy of BMW OF NORTH AMERICA, INC.

Installation of luggage compartment floor:

Clean all bonding surfaces with CLEANING AGENT R1 .

Apply adhesive to bonding surface (1).

Fig 12: Bonding Surface
G11648771Courtesy of BMW OF NORTH AMERICA, INC.

Install the luggage compartment floor and rivet areas (1) and (2) with the blind rivet N3.

Fig 13: Blind Rivet Bore Holes Areas
G11648770Courtesy of BMW OF NORTH AMERICA, INC.

Remove excess adhesive.

IMPORTANT: Do not use any cleaning agents containing solvents.

After hardening of the adhesive, install 5 EMC SCREWS  in the areas (1).

Fig 14: EMC Screws Installation Areas
G11648773Courtesy of BMW OF NORTH AMERICA, INC.
