41 21XXX Replacing left or right C-pillar reinforcement (tail panel and rear quarter panel removed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Observe REPAIR STAGE 3 .

Use only an approved SPOT WELDER for repairs.

Following new body parts are required:

C-pillar
C-pillar, inner

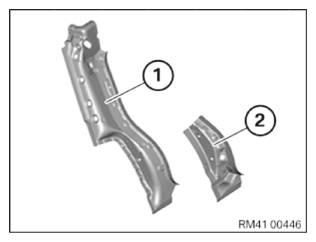

Fig 1: Inner C-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

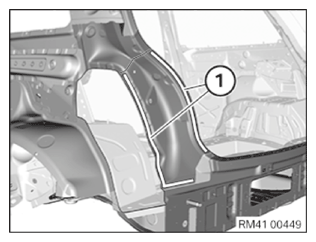

Open WELDED CONNECTIONS in area (1).

Fig 2: Inner C-Pillar Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut in accordance with dimension and cut.

IMPORTANT: Cut outer metal panel only.

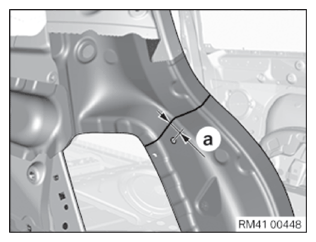

Dimension a = approx. 20 mm from 8 mm dia. hole.

Remove reinforcement on C pillar.

Fig 3: Checking Reinforcement On C-Pillar Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark and cut the severance cut on new part as per the severance cut on the vehicle.

Prepare REINFORCEMENT PLATE at severance cut.

Prepare new parts for joining by welding.

Adjust new parts in combination with tail panel and side panel.

NOTE: Tail panel serves as a positioning aid in this operation and during installation. New parts are not welded to the tail panel during installation. New parts are joined to the tail panel with bonded rivets.

Installation:

Install new parts in combination with tail panel.

Weld new parts in areas (1).

NOTE: Do not weld new parts to tail panel.

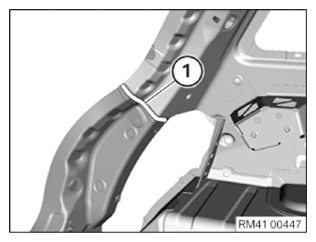

Fig 4: Tail Panel Weld New Parts In Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Weld new parts in area (1).

Fig 5: Tail Panel Weld New Parts In Area

Courtesy of BMW OF NORTH AMERICA, INC.
