41 00... Welding in reinforcement plate (sheet steel)

In the case of a partial replacement piece, a body component is cut at a point described in the repair instructions.

A reinforcement plate is welded in to ensure sufficient strength.

Follow notes for WELDING STEEL COMPONENTS .

Mark component in accordance with dimension A and cut.

Fig 1: Marking Component In Accordance With Dimension And Cut

Courtesy of BMW OF NORTH AMERICA, INC.

Cut new part (1) in accordance with cut and if necessary adjust to fit with alignment bracket or universal mount.

Installation note:

Maintain a distance of approximately one to no more than two material thicknesses at the severance cut to ensure welding with the reinforcement metal and enable more tolerant adjustment.

Fig 2: Cutting New Part In Accordance

Courtesy of BMW OF NORTH AMERICA, INC.

Clean inner and outer sides of connection faces (1) on new part and (2) on body.

Coat insides with welding primer.

Fig 3: Cleaning Inner And Outer Sides Of Connection Faces On New Part And Body

Courtesy of BMW OF NORTH AMERICA, INC.

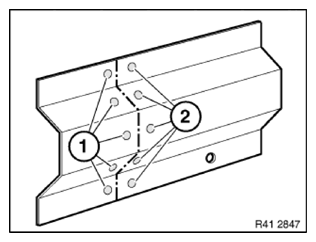

Drill bore holes (1) and (2) at distance of 25 mm to each other.

Hole diameter approx. 8 mm.

Fig 4: Locating Bore Holes Drilling Area

Courtesy of BMW OF NORTH AMERICA, INC.

Make reinforcement plate (1) from trim of new part.

If applicable, produce more reinforcement plates.

Length of reinforcement plates is min. 40 mm.

Coat reinforcement plates (1) and (2) on both sides with welding primer.

Fig 5: Locating Reinforcement Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Push reinforcement plate (1) into component on body up to half way and plug-weld (3).

Fig 6: Pushing Reinforcement Plate Into Component On Body

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, adjust the new part (1) with the alignment bracket or universal tool and plugweld (2)

MAG weld the joint (3).

Grind and clean weld seam and plug weld spots.

Only visible areas of the outer skin and on the carrier support must be tinned.

All areas which have covers on the vehicle are not to be tinned.

Fig 7: Locating MAG Weld Joint

Courtesy of BMW OF NORTH AMERICA, INC.

European used-vehicle regulations prohibit the use of tin containing lead in motor vehicles introduced after 01.07.2003!
