Replacing crankshaft pulse sensor (B36, B38, B46, B48) (Cooper Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 MINI Cooper, 2020 MINI Cooper, 2019 MINI Cooper, 2018 MINI Cooper, and 2017 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES on protection against electrostatic discharge (ESD protection)!

Preliminary work needed:

Remove FAN COWL .

Removal:

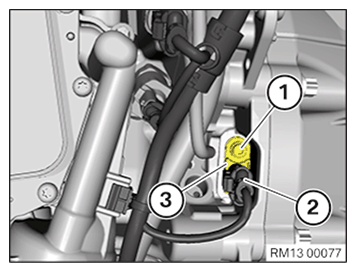

Unlock plug (2) from pulse generator and detach.

Remove screw (1).

Remove pulse generator (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install pulse sensor (3).

Tighten screw (1).

Tightening torque 13 62 2AZ .

Attach connector (2) on pulse sensor.

Connector (2) must snap audibly into place.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install FAN COWL .
