51 31 200 Removing and installing/replacing rear window

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

The following notes form the basis for these repair instructions and must be adhered to at all times:

General instructions on window bonding:
- See SAFETY AT WORK

- See INFORMATION ON VEHICLE PROTECTION

- See MATERIALS FOR BONDING WINDOW

- See TOUCHING UP PAINTWORK DAMAGE

NOTE: Remove with "SPIDER ".

The following new parts are required:

Material	Quantity
Rear window (with replacement)	1
Small repair kit	1

Necessary preliminary tasks:

Remove REAR SPOILER
Remove REAR WINDOW WIPER MOTOR
Remove TRIM FOR LEFT/RIGHT REAR WINDOW FRAME
Remove LOWER COVER ON REAR WINDOW

Attention!

When reusing the rear window:

Avoid damaging wires for heated rear window/aerial.

Do not allow any adhesive to come into contact with the connecting contacts of the heated rear window/aerial.

Removal:

Release screws (1).

Remove retaining strip (2).

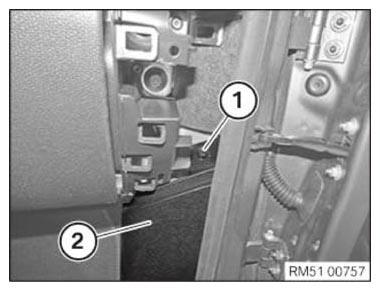

Fig 1: Retaining Strip And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Unlock and disconnect plug connections (2) on left/right.

Release screw (3) on left/right.

Secure cable to rear window with adhesive tape.

Fig 2: Rear Window Plug Connections And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Risk of damage!

Tape off body in area of piercing point with fabric adhesive tape.

Slide string out of "SPIDER " at line (1) through adhesive bead.

Cut the side window out.

Fig 3: Spider Line

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fitting spacer buffers:

Attention!

Spacer buffers are installed to avoid rear window breakage.

Remove damaged spacer buffer completely.

Bond new spacer buffer at marks.

Fig 4: Locating Spacer Buffers

Courtesy of BMW OF NORTH AMERICA, INC.

Overview of rear window bonding:

Fig 5: Rear Window Bonding Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

a [mm] = Position of adhesive bead to the tolerance band	centrally between the tolerance band
b [mm] = Width adhesive bead	8 ±2
h [mm] = Height adhesive bead	12 ±1

Mount retaining strip (1) on side window.

A tolerance band is printed on the ceramic (two dashed lines) that marks the position of the adhesive bead. Place adhesive bead centrally on tolerance band.

Bead joint must be located in area (A).

Make sure tailgate is fully closed.

Carefully working on rear window with suction lifter:

position at bottom on tailgate
Align sides evenly
insert at top and press down
secure vertically with yellow plastic adhesive tape

Connect plug connection (1).

Connect plug connections (2) on left/right.

Tighten screw (3) on left/right.

Fig 6: Rear Window Plug Connections And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Position supporting strip (2).

Tighten down screws (1).

Fig 7: Retaining Strip And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
