51 32 211 Removing and installing/replacing the front left or right rubber window seal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT DOOR WINDOW GLASS
Remove the WEATHER STRIP ON THE FRONT DOOR ON THE INSIDE

IMPORTANT: The NOTES on installation of rubber window seals serve as the basis for these repair instructions and must be observed without fail.

Removal:

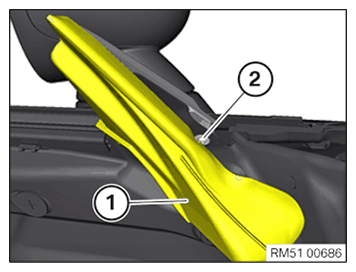

Slightly fold back the rubber window seal (1).

Release screw (2).

Fig 1: Rubber Window Seal And Screw

G11649292

Courtesy of BMW OF NORTH AMERICA, INC.

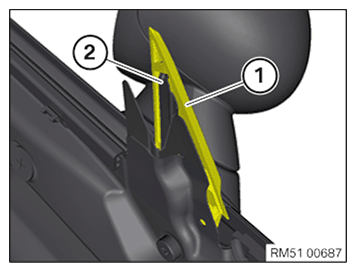

Feed out corner trim (1) upwards out of guide (2) and remove.

Fig 2: Corner Trim And Guide

G11649293

Courtesy of BMW OF NORTH AMERICA, INC.

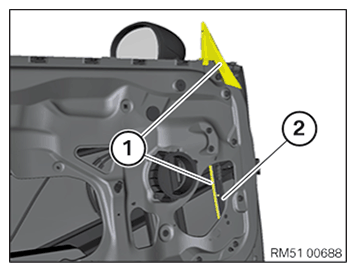

Pull out the rubber window seal (1) from the window guide rail (2).

Fig 3: Rubber Window Seal And Window Guide Rail

G11649294

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The rubber window seal (1) must not be damaged at corners (2).

Fig 4: Checking Rubber Window Seal For Damage

G11649295

Courtesy of BMW OF NORTH AMERICA, INC.

Coat the rubber window seal (1) with APPROVED LUBRICANT prior to installation.

Insert the rubber window seal (1) into the window guide rail (2).

Fig 5: Rubber Window Seal And Window Guide Rail

G11649294

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in corner trim (1) into guide (2).

Fig 6: Corner Trim And Guide

G11649293

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (2).

Tightening torque 51 33 3AZ .

Mount the rubber window seal (1).

Fig 7: Rubber Window Seal And Screw

G11649292

Courtesy of BMW OF NORTH AMERICA, INC.
