51 32 170 Removing and installing/replacing door window glass, front left or right

Special tools required:

• 51 3 240 (window glass wrench)

Carry out work on power windows with de-energized power window motors only.

Necessary preliminary tasks:

• Remove SOUND INSULATION  on front door
• Remove OUTER WEATHER STRIP

Removal:

Slacken multipoint head cap screws (1) on ring gear with special tool 51 3 240 (window glass wrench).

Fig 1: Slackening Multipoint Head Cap Screws On Ring Gear With Special Tool (51 3 240)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Ring Gear And Torx Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Open door window glass (1) to dimension (x) until multipoint head cap screws (2) are accessible.

Dimension x = approx. 150 mm

Disconnect plug connection (3) at power window motor (pinch hazard).

Fig 3: Checking Door Window Glass Opening Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Release multipoint head cap screws (2).

Raise holder (1) at tab (2) and remove door window glass (3) in upward direction.

Fig 4: Raising Holder At Tab

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure door window glass (1) is correctly seated on holder (2) and window guide (3).

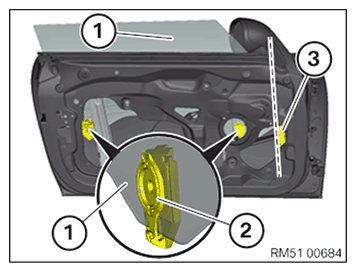

Fig 5: Door Window Glass, Holder And Window Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten multipoint head cap screws (2) by hand.

Connect plug connection (3) to power window motor.

Close door window glass (1).

Fig 6: Checking Door Window Glass Opening Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten multipoint head cap screws (1) on ring gear with special tool 51 3 240 (window glass wrench).

Tightening torque 51 33 2AZ .

Fig 7: Slackening Multipoint Head Cap Screws On Ring Gear With Special Tool (51 3 240)

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Adjust DOOR WINDOW GLASS .
• Carry out POWER WINDOW NORMALIZATION
• Check function of power windows and anti-trap mechanism
