51 16 041 Removing and installing/replacing protective cap on left or right exterior mirror

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MIRROR GLASS

Removal:

Unlock the protective cap using a small screwdriver (1) through the bore holes (see arrows).

Unlock the protective cap with a slight tug clockwise on the retaining lugs (2).

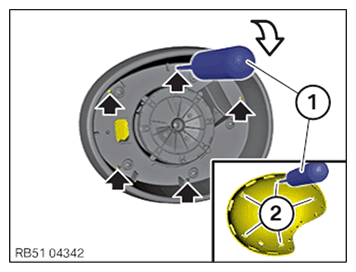

Fig 1: Unlocking Protective Cap Using Small Screwdriver

G11649088

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective cap (1).

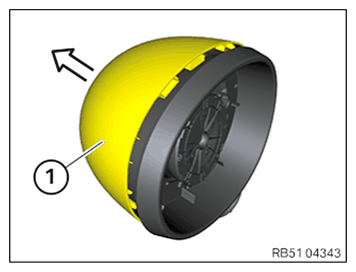

Fig 2: Removing Protective Cap

G11649089

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Latch mechanisms (1) on housing (2) must not be damaged.

Fig 3: Latch Mechanisms On Housing

G04797492

Courtesy of BMW OF NORTH AMERICA, INC.

Install the protective cap (1) and engage it on all the latch mechanisms through pressure.

Fig 4: Installing Protective Cap

G11649091

Courtesy of BMW OF NORTH AMERICA, INC.
