51 36 070 Removing and installing/replacing left or right rear side window

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The following notes form the basis for these repair instructions and must be adhered to at all times:

General instructions on window bonding:
- See SAFETY AT WORK

- See INFORMATION ON VEHICLE PROTECTION

- See MATERIALS FOR BONDING WINDOW

- See TOUCHING UP PAINTWORK DAMAGE

NOTE: Remove with "SPIDER ".

Necessary preliminary work:

Remove ROOT TRIM STRIP
Remove COVER ON ROOF PILLAR AT REAR

Removal:

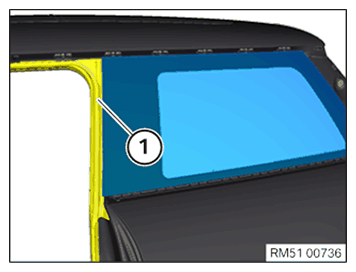

Detach edge protection (1) in area of side window.

Fig 1: Edge Protection Of Side Window

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!

Tape off body in area of piercing point with fabric adhesive tape.

Slide string out of "SPIDER " at line (1) through adhesive bead.

Cut the side window out.

Fig 2: Spider Line

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation of Dual Lock tapes:

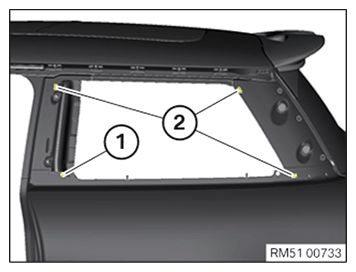

Remove remnants of guide pin (1) and Dual Lock tapes (2) and clean bonding surface.

Apply new Dual Lock tape (2) between the marks on the body area.

Fig 3: Guide Pin And Dual Lock Tapes

Courtesy of BMW OF NORTH AMERICA, INC.

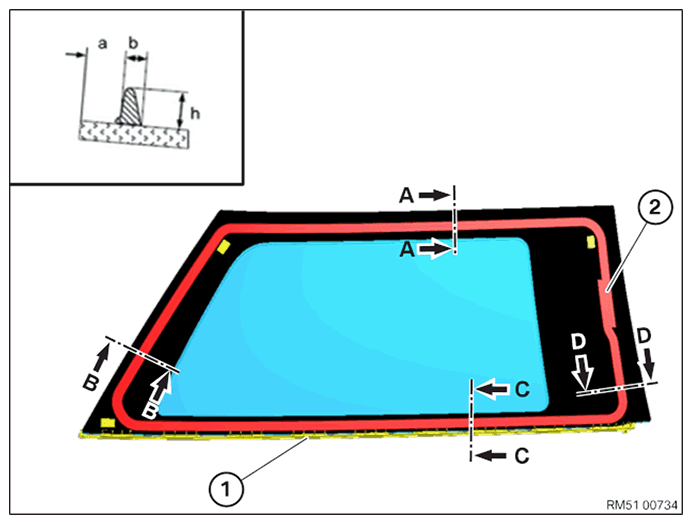

Overview for side window bonding:

Mount retaining strip (1) on side window.

Apply bead joint in area (2).

Fig 4: Side Window Bonding Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

	A - A	B - B	C - C	D - D
a [mm] = Position adhesive bead	22 ±1	17 ±1	7 ±1 (to retaining strip)	36 ±1
b [mm] = Width adhesive bead	7 ±1
h [mm] = Height adhesive bead	12 ±1

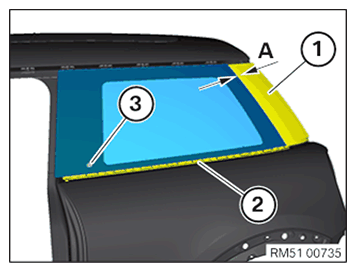

Mount TRIM (1) .

First mount side window with suction lifter at bottom with retaining strip (2) and insert with pin (3) into body.

Position side window at top.

NOTE: When refitting, align side window to trim (1) in accordance with dimension (A).

A = 2.5 ±1 mm

Fig 5: Checking Side Window To Trim Fitting Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Press side window onto body and engage in Dual Lock tapes.

Fix side window in position with yellow plastic adhesive tape (sourcing reference: BMW Parts Department).

Fit edge protection (1) in area of side window.

Fig 6: Edge Protection Of Side Window

Courtesy of BMW OF NORTH AMERICA, INC.
